VFD ntsia hlau cua compressor 0.7-1.25mpa Zog Txuag tau txog li 30%
Cov txiaj ntsig tseem ceeb
1. Lub tshuab cua txias VFD ntse nrog cov txheej txheem sib phim thauj khoom txuag tau 20–35% zog thiab tswj tau ± 0.01 MPa siab ruaj khov.
2. Lub cev muaj zog ob lub plhaub uas txias thiab roj tsis yooj yim rau hmoov av—zoo tagnrho rau cov chaw ib puag ncig hnyav xws li cov chaw tsim khoom thiab cov chaw cog cement.
3. Ntau yam dav 7.5–250kW, txog li 1.25 MPa, nrog rau cov voltages uas hloov kho tau rau kev lag luam tsheb, khoom noj, tshuaj, thiab textile.
4.21 xyoo ntawm kev paub dhau los, 81 ° C tswj qhov kub tas li, ≤3 PPM roj cov ntsiab lus, 12-hli warranty, thiab kev txhawb nqa tag nrho rau kev xa tawm.
Kev Ntsuas Txuj Ci
| XZV-series | ||||||||||
| Qauv | 10A | 15A | 20A | 25A | 30A | 40A | X50A | 60A | 75A | |
| Kev xa cua dawb / Kev tso pa tawm (M3 / feeb / Mpa) | 1.1/0.7 | 1.65/0.7 | 2.5/0.7 | 3.0/0.7 | 3.7/0.7 | 5.0/0.7 | 6.5/0.7 | 8.0/0.7 | 10.8/0.7 | |
| 1.0/0.8 | 1.5/0.8 | 2.3/0.8 | 2.9/0.8 | 3.5/0.8 | 4.8/0.8 | 6.2/0.8 | 7.5/0.8 | 10.2/0.8 | ||
| 0.9/1.0 | 1.53/1.0 | 2.1/1.0 | 2.7/1.0 | 3.1/1.0 | 4.3/1.0 | 5.6/1.0 | 6.8/1.0 | 9.0/1.0 | ||
| 0.8/1.25 | 1.1/1.25 | 1.7/1.25 | 2.4/1.25 | 2.7/1.25 | 4.0/1.25 | 5.0/1.25 | 5.6/1.25 | 7.6/1.25 | ||
| Qhov kub ntawm huab cua | ≤ambient kub + 8 ~ `15ºC | |||||||||
| Lub cev muaj zog | Lub zog (kw/hp) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 |
| Txoj kev pib | Y-△ Pib | |||||||||
| Qhov hluav taws xob (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ/ 460V- 3PH- 60HZ/ 220V- 3PH-60HZ/ 400V-3PH-50HZ/6000V-3PH-50HZ/lwm yam voltagesd customized) | |||||||||
| Txoj kev tsav tsheb | Tsav Tsheb Ncaj Qha | |||||||||
| Cov roj ntsiab lus (PPM) | ≤3 | |||||||||
| Txuas nti | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | |
| Suab nrov (Db) ± 2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | |
| Qhov Loj | ntev hli | 850 | 1100 | 1100 | 1250 | 1250 | 1250 | 1350 xyoo | 1350 xyoo | 1800 xyoo |
| dav hli | 670 | 750 | 750 | 850 | 850 | 850 | 1000 | 1000 | 1230 | |
| qhov siab hli | 870 | 920 | 920 | 1160 | 1160 | 1160 | 1190 | 1190 | 1570 xyoo | |
| Qhov hnyav (kg) | 178 | 260 | 267 | 310 | 396 | 450 | 586 | 593 | 1073 | |
| Qauv | 100A | 120A | 150A | 175A | 200A | 250A | 300A | 350A | ||
| Kev xa cua dawb / Kev tso pa tawm (M3 / feeb / Mpa) | 13.4/0.7 | 16.2/0.7 | 21.0/0.7 | 24.5/0.7 | 28.7/0.7 | 32.0/0.7 | 36.0/0.7 | 42.0/0.7 | ||
| 12.6/0.8 | 15.0/0.8 | 19.8/0.8 | 23.2/0.8 | 27.6/0.8 | 30.4/0.8 | 34.3/0.8 | 40.5/0.8 | |||
| 11.2/1.0 | 13.8/1.0 | 17.4/1.0 | 20.5/1.0 | 24.6/1.0 | 27.4/1.0 | 30.2/1.0 | 38.2/1.0 | |||
| 10/1.25 | 12.3/1.25 | 14.8/1.25 | 17.4/1.25 | 21.5/1.25 | 24.8/1.25 | 27.7/1.25 | 34.5/1.25 | |||
| Qhov kub ntawm huab cua | ≤ambient kub + 8 ~ `15ºC | |||||||||
| Lub cev muaj zog | Lub zog (kw/hp) | 75/100 | 90/120 | 110/150 | 132/175 | 160/200 | 185/250 | 220/300 | 250/350 | |
| Txoj kev pib | Y-△ Pib | |||||||||
| Qhov hluav taws xob (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ/ 460V- 3PH- 60HZ/ 220V- 3PH-60HZ/ 400V-3PH-50HZ/6000V-3PH-50HZ/lwm yam voltagesd customized) | |||||||||
| Txoj kev tsav tsheb | Tsav Tsheb Ncaj Qha | |||||||||
| Cov roj ntsiab lus (PPM) | ≤3 | |||||||||
| Txuas nti | 2" | 2" | 2 1/4" | 2 1/2" | 2 1/2" | 2 1/2" | DN100 | DN100 | ||
| Suab nrov (Db) ± 2 | 78 | 85 | 85 | 85 | 88 | 88 | 90 | 90 | ||
| Qhov Loj | ntev hli | 1900 xyoo | 1900 xyoo | 2300 | 2300 | 2650 | 2650 | 3300 | 3300 | |
| dav hli | 1230 | 1230 | 1470 xyoo | 1470 xyoo | 1650 xyoo | 1650 xyoo | 2100 | 2100 | ||
| qhov siab hli | 1570 xyoo | 1570 xyoo | 1840 xyoo | 1840 xyoo | 2045 | 2045 | 2045 | 2190 | ||
| Qhov hnyav (kg) | 1171 | 1327 xyoo | 1801 xyoo | 1848 xyoo | 2400 | 2600 | 3100 | 3300 | ||

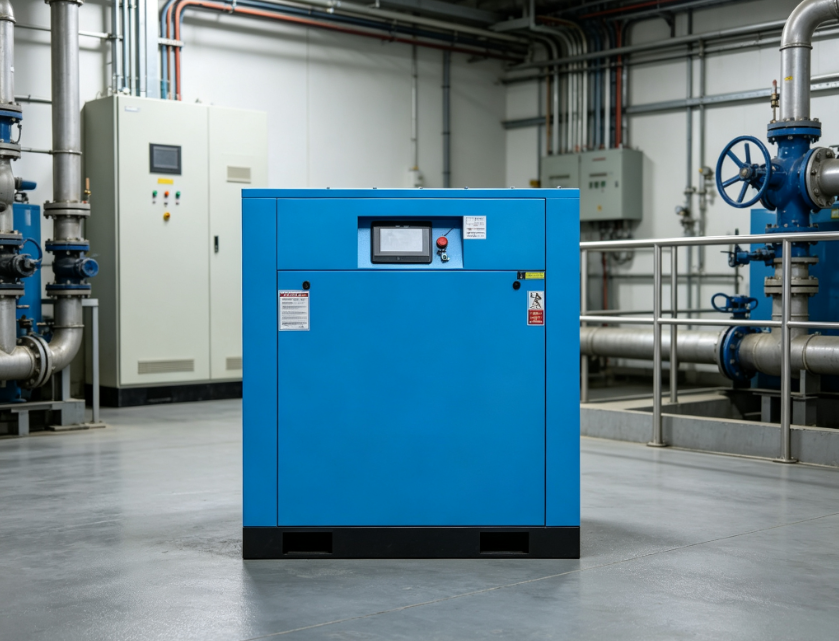

Daim Ntawv Thov
- Kev Tsim Khoom Tsheb: Cov kab sib dhos, cov khw pleev xim, cov tshuab robotic
- Kev Ua Hlau: CNC machining, stamping, laser / plasma txiav
- Khoom Noj & Dej Haus: Ntim Khoom, Lub raj mis, Kev xa khoom, kev tswj hwm pneumatic
- Tshuaj: Huab cua huv chav, fermentation, ntsiav tshuaj nias
- Electronics: PCB sib dhos, SMT kab, kev kuaj xyuas Cheebtsam
- Yas & Roj Hmab: Txhaj tshuaj molding, tshuab molding, extrusion
- Kev Lag Luam Textile: Dav hlau cua looms, spinning, dyeing finishing
- Kev Tshawb Fawb thiab Kev Tsim Kho: Cov khoom siv cua hnyav
- Kev Ua Haujlwm Ntoo: Xuab zeb, clamping, pneumatic nail phom
- Ib puag ncig muaj plua plav: Cov chaw tsim khoom, cov chaw tsim cement, kev ua cov khoom siv minerals (zoo tagnrho rau kev tsim lub cev muaj zog ob lub plhaub roj txias)
Cov Lus Nug Feem Ntau
Q1: Kuv tuaj yeem txuag tau hluav taws xob ntau npaum li cas nrog lub tshuab compressor XZV VFD?
A: Peb cov txheej txheem sib phim qhov hnyav tshwj xeeb muab kev txuag hluav taws xob ntau piv rau cov compressors ceev ruaj khov. Kev txuag tiag tiag nyob ntawm koj qhov profile thauj khoom, tab sis cov txiaj ntsig ib txwm muaj txij li 20–35% hauv cov ntawv thov kev thov hloov pauv.
Q2: Dab tsi ua rau lub cav ob lub plhaub txias uas muaj roj txias tshwj xeeb?
A: Tus qauv tsim ob lub plhaub ncig cov roj txias los ntawm txoj kev hla ntawm cov plhaub sab hauv thiab sab nraud, siv lub tshuab compressor lubrication system. Qhov no tshem tawm kev sib cuag nrog cov cua txias sab nraud, ua rau lub cev muaj zog tiv taus cov hmoov av, av qias neeg, thiab cov pa phem - zoo meej rau cov chaw ua haujlwm hnyav.
Q3: Lub ntsiab lus ntawm kev tswj siab tas li thiab kev tswj kub tas li yog dab tsi?
A: Kev tswj lub siab tas li ua rau lub zog cua hloov pauv hauv ± 0.01 MPa, ua kom cov zis ruaj khov rau cov txheej txheem rhiab heev. Kev tswj qhov kub tas li ua rau lub compressor ntawm 81 ° C, ua kom cov roj viscosity zoo dua rau kev ua kom lubrication zoo dua thaum tiv thaiv kev kaw tam sim ntawd thaum kub siab.
Q4: Qhov txawv ntawm VFD thiab cov compressors ceev ruaj khov yog dab tsi?
A: Cov tshuab cua VFD kho qhov ceev ntawm lub cev muaj zog raws li qhov xav tau cua tiag tiag, tsuas yog siv lub zog xav tau rau txhua lub sijhawm. Cov tshuab cua ceev ruaj khov khiav ntawm qhov ceev tag nrho txawm tias qhov xav tau npaum li cas los xij, pov tseg lub zog thaum lub sijhawm tsis muaj neeg coob.
Q5: Koj puas tuaj yeem hloov kho qhov voltage rau kuv lub tebchaws?
A: Yog. Peb muab tus qauv 380V/3PH/50Hz, nrog rau kev xaiv 380V-3PH-60Hz, 460V-3PH-60Hz, 220V-3PH-60Hz, 400V-3PH-50Hz, 6000V-3PH-50Hz, thiab lwm yam voltages thaum thov.
Q6: Cov roj ntawm cov cua compressed yog dab tsi?
A: XZV series xa cua nrog cov roj cov ntsiab lus ≤3 PPM, ua tau raws li qhov yuav tsum tau ua ntawm feem ntau ntawm cov ntawv thov kev lag luam.
